BM Tri-Sonic Style Pickup Set

UK Price  £125.00 Inc. 20% VAT
WORLDWIDE PRICE £104.17
(1 Review)
In Stock
Product Details

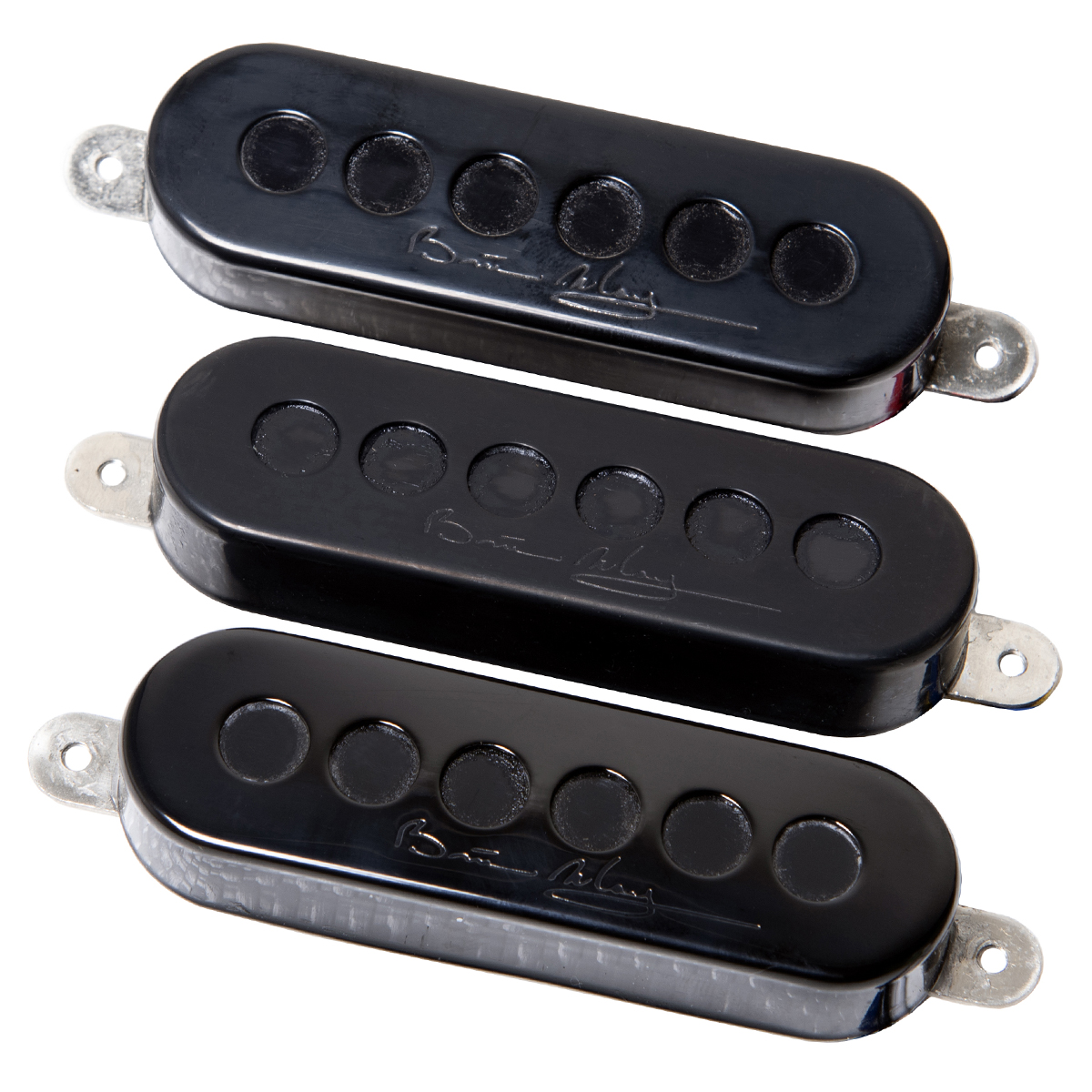

BM Brand Tri-Sonic Style Pickups — Set of 3

Standard issue on the BMG Special, these are modern replicas of the Burns Tri-Sonics that Brian May and his father installed on the Red Special and, whilst there are some technical differences, they produce a accurate reproduction of the original tone.

The three pickups are wired in series for increased output and a fuller signal. When more than one pickup is active the resultant tone is more akin to that of a humbucker, with considerably more warmth and gain than a traditional parallel wired single-coil arrangement.

In addition, the middle pickup is reverse wound and reverse polarity (RWRP) emulating the configuration employed by Brian and his father. The pickup's magnetic pole is reversed and its coils physically wound in the opposite direction compared to the other pickups. Hence, when the middle pickup is selected in combination with either or both of the other pickups in phase, a hum-cancelling effect is created, reducing noise and hum in the output of the guitar.

In combination with the phase switching system employed on the Special, the sound of the selected pickups can be tailored to produce an incredible variety of tones.

AVAILABLE IN CHROME, BLACK & GOLD

Please note that this set does not include mounting screws or springs.

Specifications
PICKUP POSITION Neck
Turns 5,700
Wire 0.05mm enamelled copper, wound Clockwise
Magnet Ceramic F5, with top facing North
Baseplate Non-magnetic
START WIRE Black
FINISH WIRE Red
EARTH WIRE Green
PICKUP POSITION Middle
Turns 5,700
Wire 0.05mm enamelled Copper, wound anti-clockwise
Magnet Ceramic F5, with top facing South
Baseplate Magnetic
START WIRE Red
FINISH WIRE Black
EARTH Green
PICKUP POSITION Bridge
Turns 5,700
Wire 0.05mm enamelled Copper, wound clockwise
Magnet Ceramic F5, with top facing North
Baseplate Magnetic
START WIRE Black
FINISH WIRE Red
EARTH Green
